Excellent sound reduction, minimal back pressure

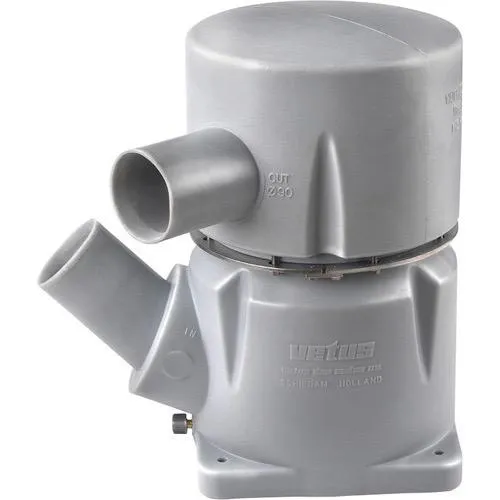

This type of waterlock is designed for modern high performance boats with one or two large engines which have little space to spare in the engine room. The outlet connection at the top can rotate through 360° and the inlet connection is at an angle of 45° upward. Type MG can only be installed in water injected exhaust systems. Its body is entirely made of synthetic materials, therefore not susceptible to corrosion or galvanic action.

Specifications:

• Excellent sound reduction
• Minimal back pressure
• Drain valve for winter storage
• Suitable for Ø 90, 102 & 127 mm internal hose diameters
• Comes with stainless steel (AISI 316) clamp bands

  Other Details:

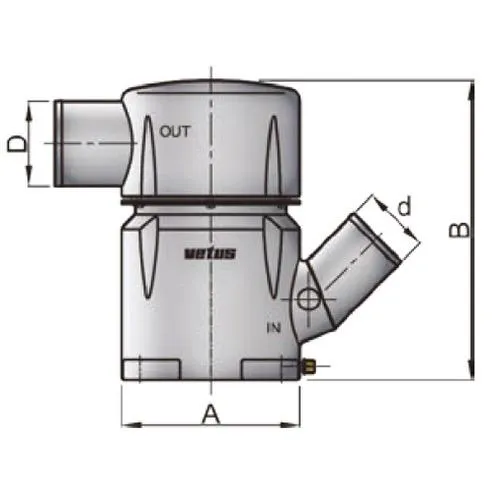

  Diagram A: Ø270mm
  Diagram B: 450mm
